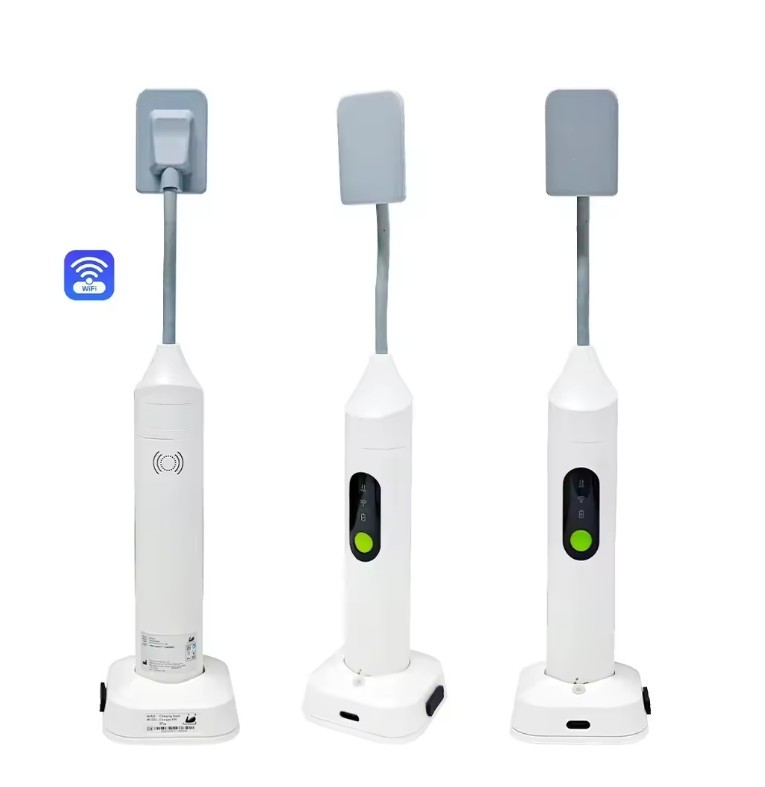

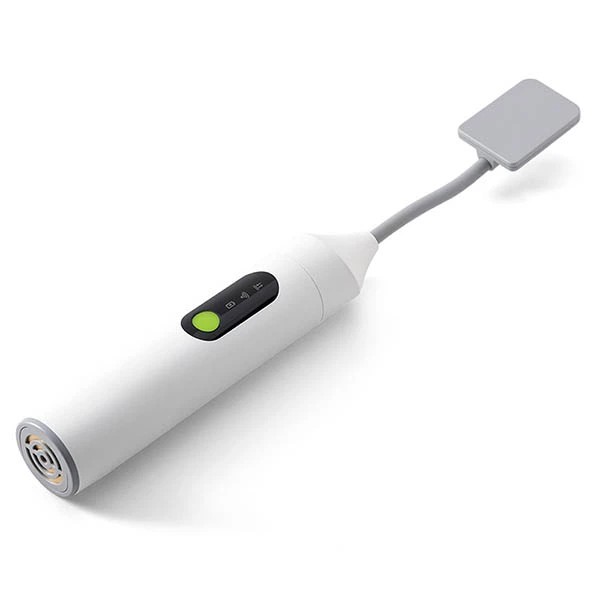

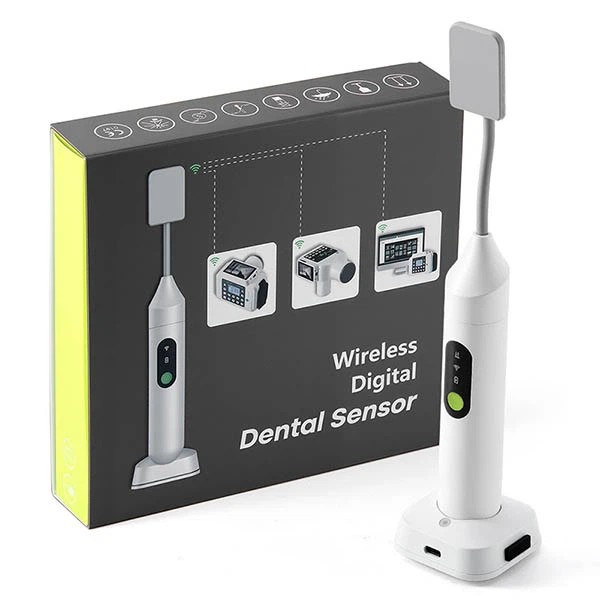

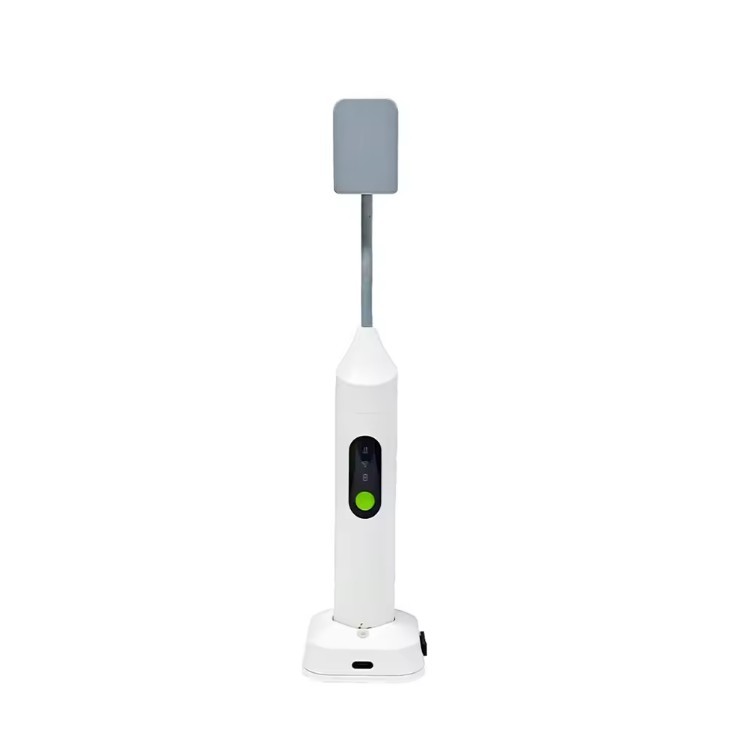

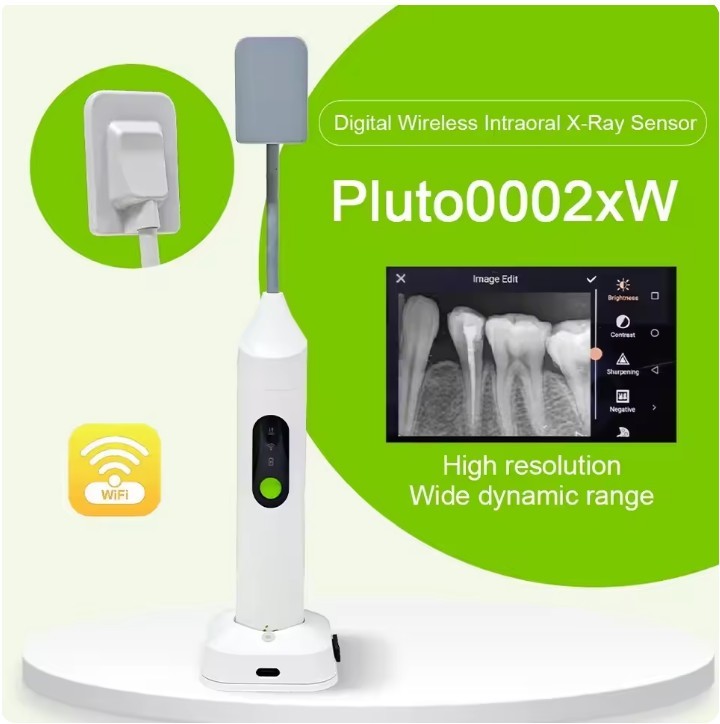

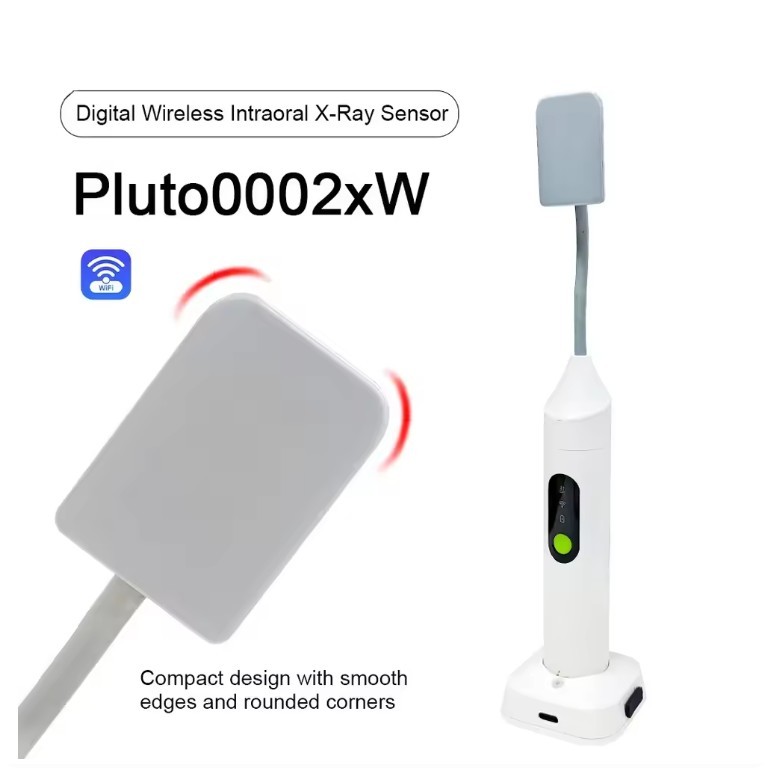

Specifications for dental x-ray sensor:
|
Mechanical Dimensions (mm³) |
32.0 × 31.0 × 274.0 |
|
Active Area (mm²) |
26 × 36 |
|
Pixel Matrix |
(2.34 M) 1300 × 1800 |
|
Sensor Technology |
APS CMOS |
|
Scintillator |
Directly deposited CsI:Tl |
|
Pixel Pitch (μm) |
20 |
|
Battery Autonomy (h) |
5 |
|
WIFI |
2.4G and 5.8G, IEEE802.11 a/b/g/n |
|
Weight (kg) |
0.13 |
|
|
Theoretical: 25 lp/mm |
|
Spatial Resolution (lp/mm) |
Actual: 14 ~ 16 lp/mm (High Sensitivity) |
|
|
18 ~ 20 lp/mm (High Resolution) |
|
Gray Level |
16 bit, 65535 grade |
|
Exposure Mode |
Smart AED |
|
Ingress Protection of sensor |
IP68 for Soak disinfection |
|
Additional |
Support TWAIN protocol |
|
Operation System |
Windows 7 and above, 32 / 64 bit |
|
Operating Temperature (℃) |
10 ~ 40 |
|
Storage & Transport Temperature with Package (℃) |
-20 ~ 55 |
|
Operating Humidity (% RH ) |
20~ 90 (Non-Condensing) |
|
Storage & Transport Humidity with Package (% RH ) |
10~95 (Non-Condensing) |
|
Dimensions |
Unit : mm |
Function:
Seamless Wireless Connectivity – Connects effortlessly with no cables, providing freedom of movement and easy positioning.
High-Resolution Imaging – Provides crystal-clear, high-definition X-ray images for accurate diagnosis and treatment planning.
Compact & Portable Design –Small, lightweight, and easy to carry, perfect for mobile dental services and clinics.
Fast Image Transmission -Instantly sends X-ray images to connected devices, speeding up diagnosis and reducing patient wait time.
Low Radiation Exposure -Emits low radiation levels, ensuring patient safety without compromising image quality.
Rechargeable Battery - Equipped with a long-lasting, rechargeable battery, providing hours of continuous use.
Durable & Waterproof (IP68) - With an IP68 waterproof rating, this sensor is fully dustproof and can withstand brief submersion in water, ensuring durability and easy cleaning.
User-Friendly Interface - Simple controls and intuitive interface for ease of use by dental professionals.
