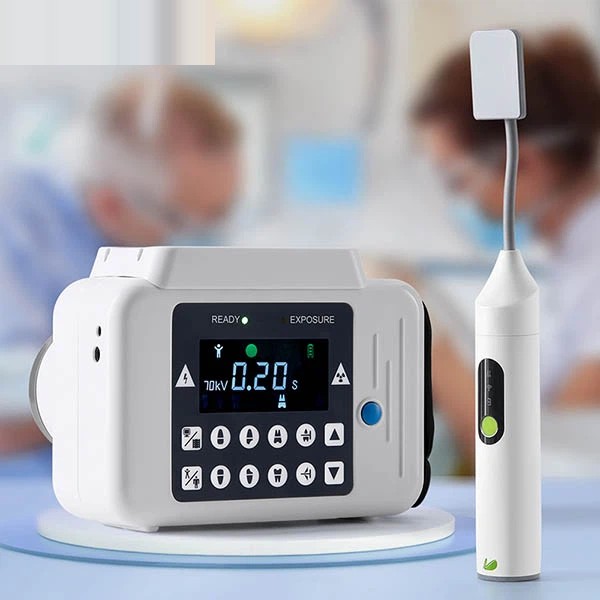

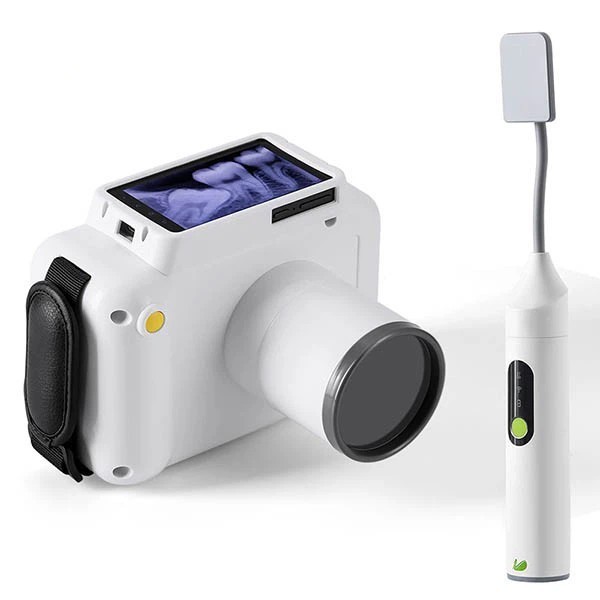

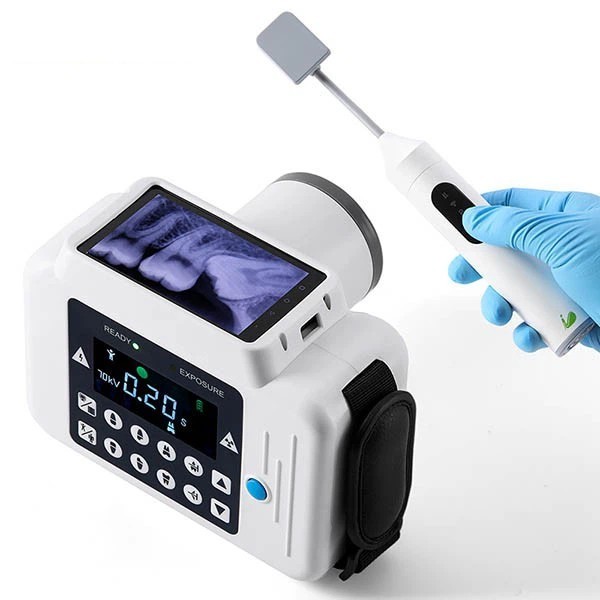

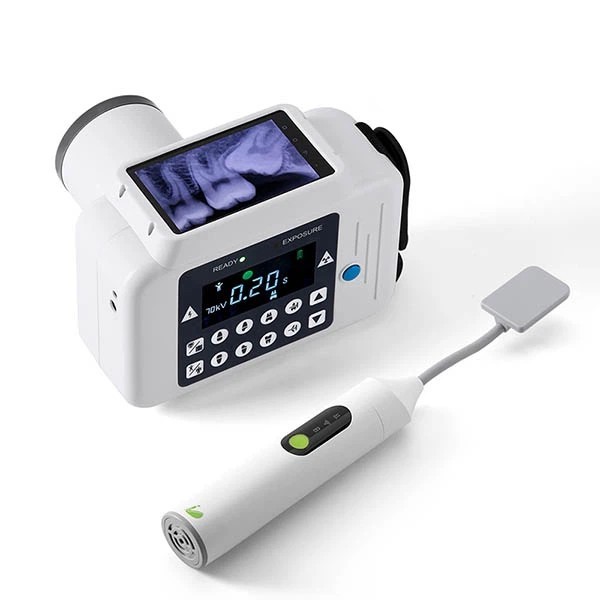

DX-PC03 Dental X-ray Machine With Wireless Sensor Set

DX-PC03 Dental X-ray Machine With Wireless Sensor Set

Category： Dental Sensor & X Ray
Product description：wireless dental xray sensor,wireless digital dental x ray sensor,wireless sensor dental, wireless dental sensors,bluetooth dental xray sensor
INQUIRY EMAIL

Specifications of portable x-ray machine:

Tube voltage	60( 70)kV	Tube current	2.0(1.0,1.5,2.5)mA
Exposure time	0. 1 ~ 2S	Frequency	30kHz
Tube focus	0.80.8(0.40.4)mm	Rated power	120 VA
skin to cone	130mm	Leak radiation	0.005mgr
Battery	DC14.8V ,1300mA	Charger	Input:AC100V-240V Output:DC16.8V
Image displayer	4.0 inch touch screen	Resolution ratio	400*800
REM	2G	ROM	16G
Bluetooth	5.0 TWO-WAY	WIFI	2.5G/5G Dual frequency
USB	2.0 OTG	Battery	DC-3.7V ,1600mA
Net weight	1.6kg	Machine size	120165140mm
Gross weight	3.0kg	Package size	300250200mm

Mechanical Dimensions (mm³)	32.0 × 31.0 × 274.0
Active Area (mm²)	26 × 36
Pixel Matrix	(2.34 M) 1300 × 1800
Sensor Technology	APS CMOS
Scintillator	Directly deposited CsI:Tl
Pixel Pitch (μm)	20
Battery Autonomy (h)	5
WIFI	2.4G and 5.8G, IEEE802.11 a/b/g/n
Weight (kg)	0.13
	Theoretical: 25 lp/mm
Spatial Resolution (lp/mm)	Actual: 14 ~ 16 lp/mm (High Sensitivity)
	18 ~ 20 lp/mm (High Resolution)
Gray Level	16 bit, 65535 grade
Exposure Mode	Smart AED
Ingress Protection of sensor	IP68 for Soak disinfection
Additional	Support TWAIN protocol
Operation System	Windows 7 and above, 32 / 64 bit
Operating Temperature (℃)	10 ~ 40
Storage & Transport Temperature with Package (℃)	-20 ~ 55
Operating Humidity (% RH )	20~ 90 (Non-Condensing)
Storage & Transport Humidity with Package (% RH )	10~95 (

Function:

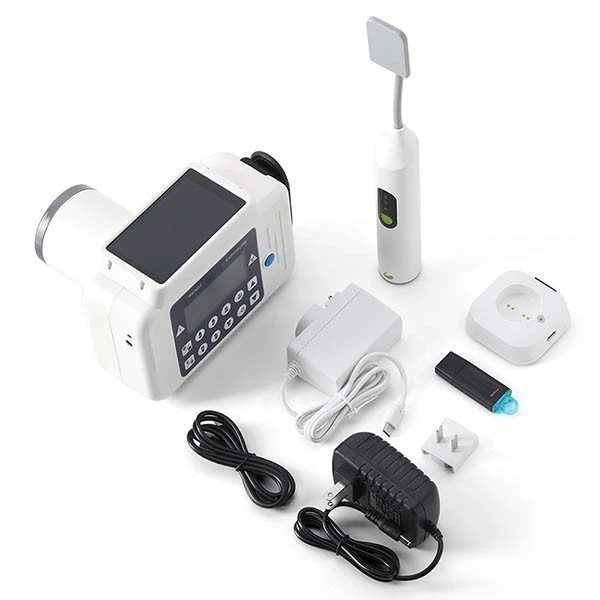

All-in-One Set: Includes a portable X-ray machine with display screen and wireless sensor for easy mobility and instant use without additional equipment.

Integrated Design: Featuring a built-in display screen, eliminating the need for additional external equipment, providing seamless functionality in a compact unit.

High-Definition Display: The wireless sensor offers superior clarity in imaging, ensuring you capture every detail, and view clear X-ray images in real-time for accurate diagnostics.

Wireless Freedom: Wireless sensor with long battery life, offering flexible operation and no cable restrictions.

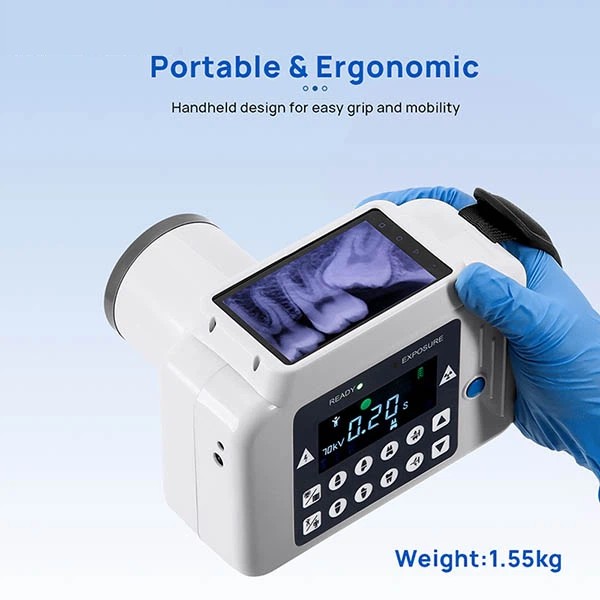

Portable and Space-Saving Design : perfect fit for small clinics, mobile dental units, or on-the-go professionals who need reliable, high-quality imaging.

Waterproof & Antibacterial : With an IP68 waterproof rating, it withstands disinfection, ensuring durability and hygiene.

Low radiation: Designed with patient and operator safety in mind, this system minimizes radiation exposure, ensuring a safe and comfortable experience for everyone involved.
