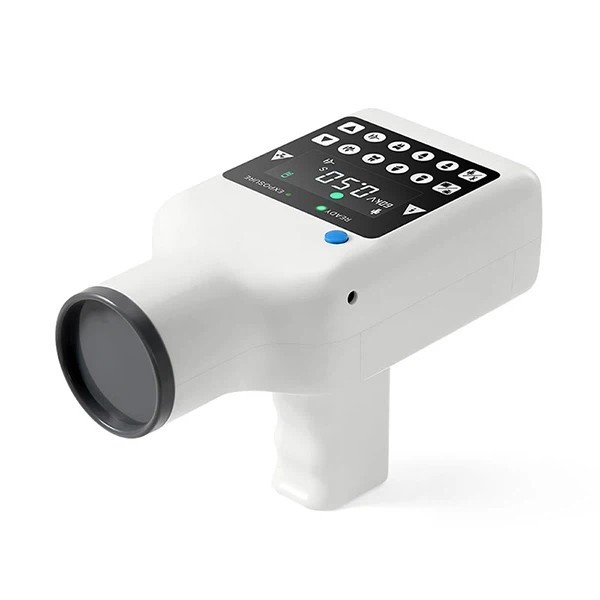

NV-81 Portable dental x ray

FEATURE:

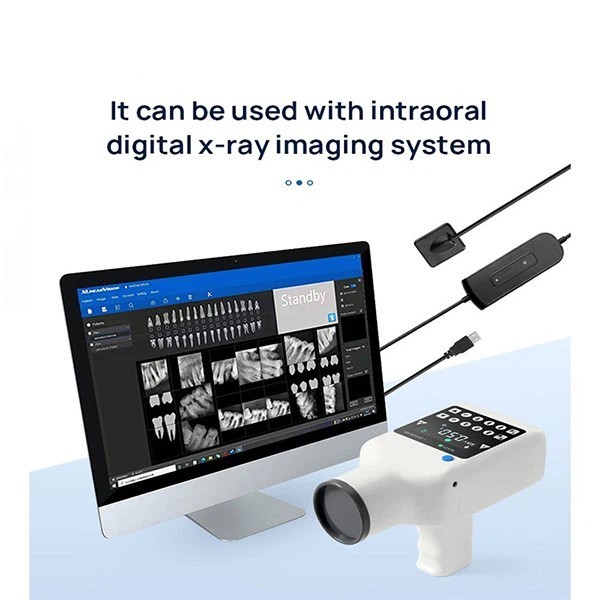

Compatible with digital sensors, X-ray film, and image plate scanners.

Small and portable.

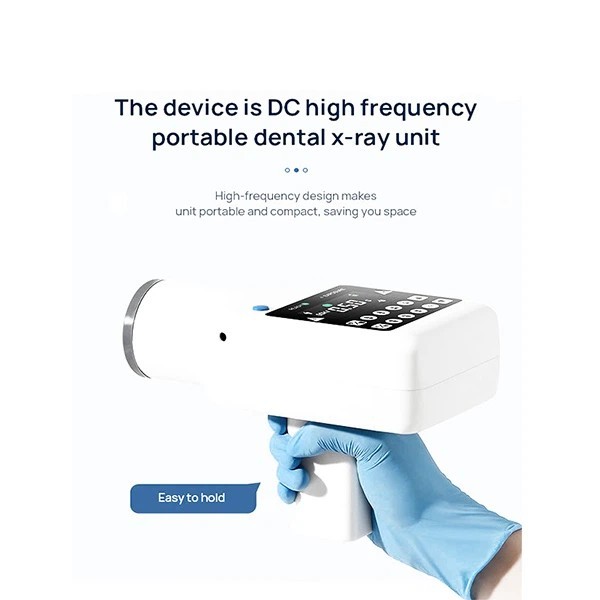

This portable dental X-ray machine is high frequency machine.

The body is small, light in weight, and the radiation leakage is less than 20μgy/h.

It has excellent image quality, portable storage, save more space.

It uses high frequency and DC international power supply.

All of the components installed in the central PC board concentrated. Shock,set-up, electron tubes, all of them are insulation vacuum, sealed stereotype protection.

Different exposure times are preset for adults and children.

The battery is durable, it can take about 4 hundred images after fully charged.


TECHNICAL SPECIFICATIONS:

Tube voltage

60KV

Tube current

2mA

Exposure time

0.1-2.0S

Frequency

30kHz

Rate power

120VA

Distance from skin to cone

105mm

Tube focus

0.8mmx0.8mm

Battery

DC14.8V 1600mAh

Charger input voltage

AC100V-240V+10%

Output voltage

DC16.8V

Ambient temperature

5ºC~40ºC

Relative temperature

<75%RH
