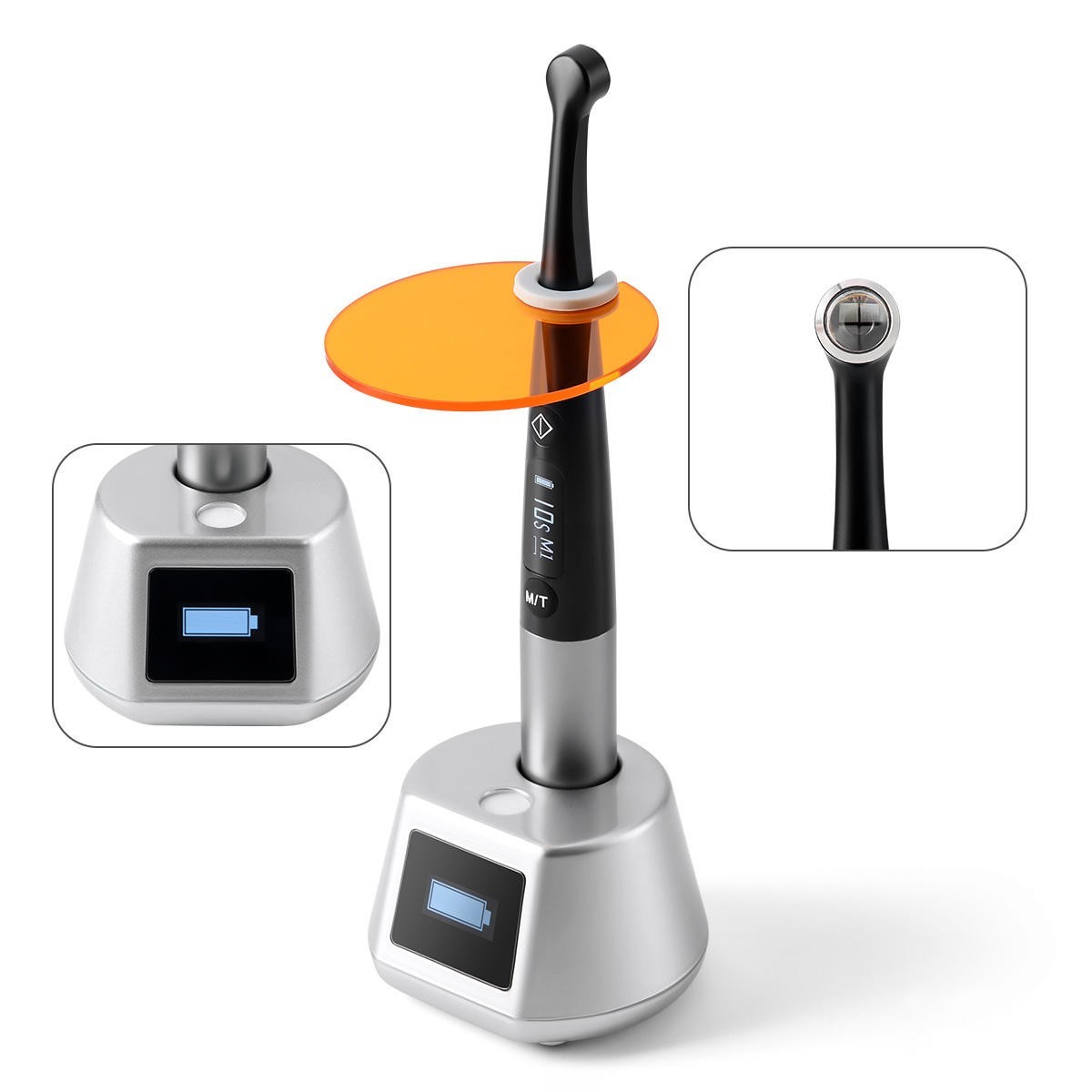

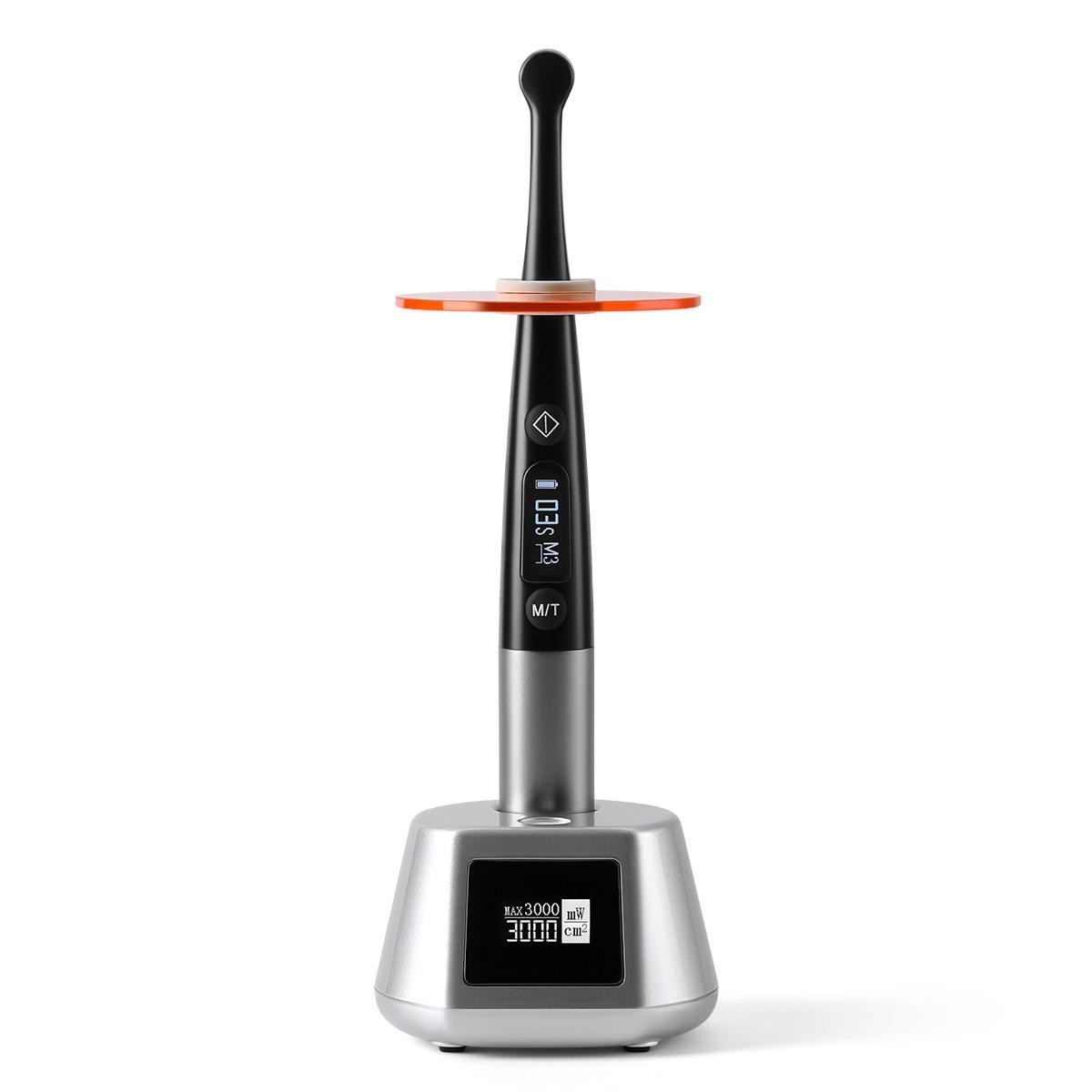

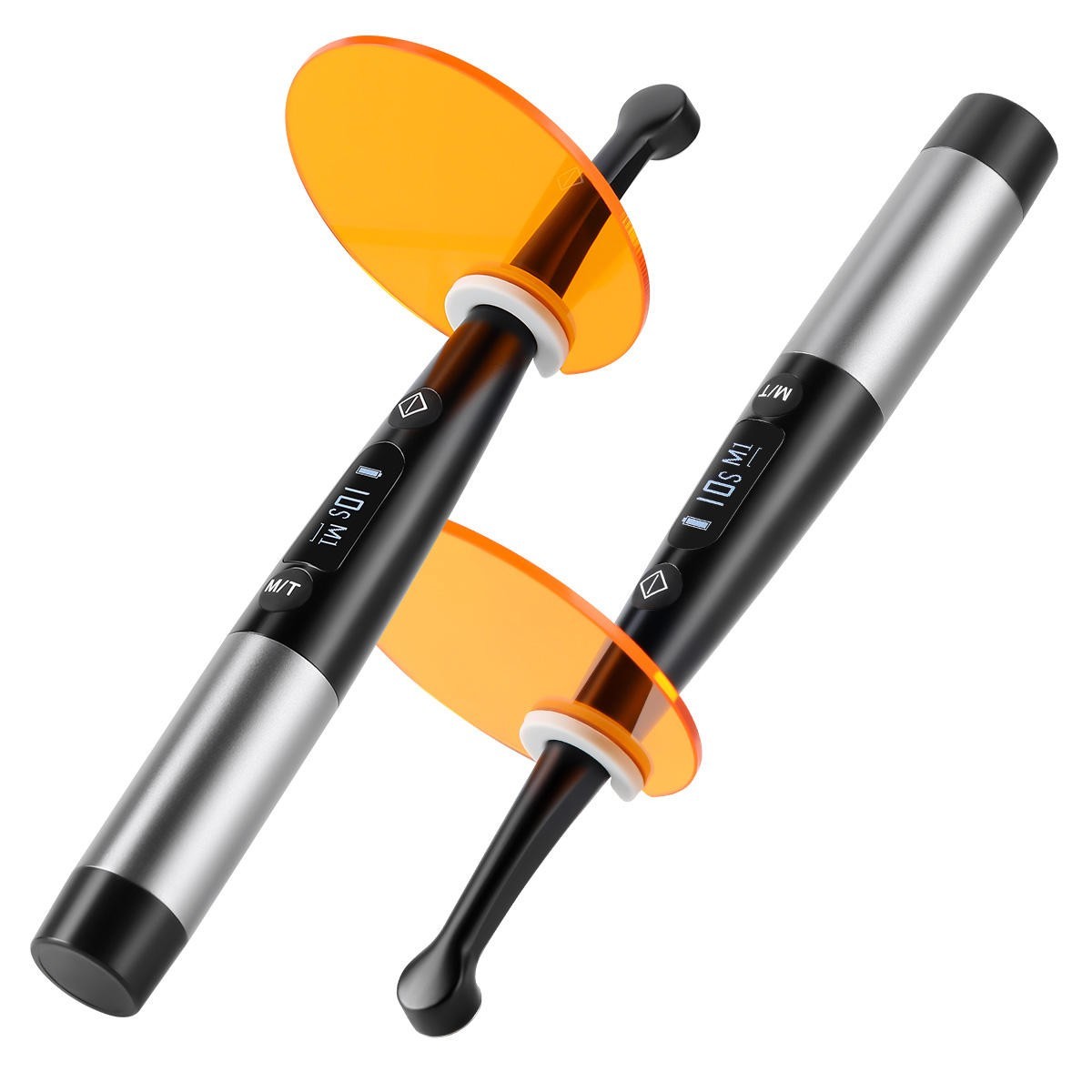

1 Sec Curing 7 Modes 10W led dental curing light

Light Source :

1. 10W high power blue light LED.

2. Checking method:the LED light is fine when the light is on during operating correctly.

3. The wave length of this product can match with the clinical dental resin solidification, such as 3M, Dentsply etc.

4. Wave length:385nm-515nm.

5. Light intensity:1000mW/cm²-3100mW/cm².

Curing light operation :

Press the mode button.Following Seven modes are available:

M1:Standard mode:Screen shows M1,Press the button to select of time which could be 5s,10s,15s,20s.Its output light intensity is about 1000mW/cm²-1300mW/cm².

M2:Strong light mode:Screen shows M2,Press the button to select of time which could be 3s,4s,5s.Its output light intensity is about 1800mW/cm²-2100mW/cm².

M3:Super-strong light mode:Screen shows M3,Press the button to select of time which could be 1s,2s,3s.Its output light intensity is about 2700mW/cm²-3100mW/cm².

M4:Orthodontic mode:Screen shows M4,Press the button to select of time which could be 3s /5 times, 3s /10 times.Its output light intensity is about 2700mW/cm²- 3100mW/cm².

M5:Examination mode: Screen shows M5,Press the button to select of time which could be 30s times, 60s times.Its output light intensity is about 2700mW / cm² - 3100mW /cm².

M6:Pulse mode:Screen shows M6,Press the button to select of time which could be 5s,10s,15s,20s.Its output light intensity is about 1000mW/cm²-1300mW/cm².

M7:Progressive mode:Screen shows M7,Press the button to select of time which could be 5s,10s,15s,20s.Its output light intensity is about 1000mW/cm²-1300mW/cm².
